Convoy 3X21D SBT90.2

Note:

1. If you put the flashlight in a bag, be sure to loosen the connection between the battery tube and the head. Otherwise, the flashlight may be turned on by mistake, which hasa risk of burning the contents in the bag.

2. Please use TYPE-A to TYPE-C cable and 5V adapter to charge the battery.

Parameter

Material: aluminum alloy

Low voltage warning: automatic power off

Reverse polarity protection:None,The positive side of the battery should be facing the head

Lens Type: ar-coated glass lens

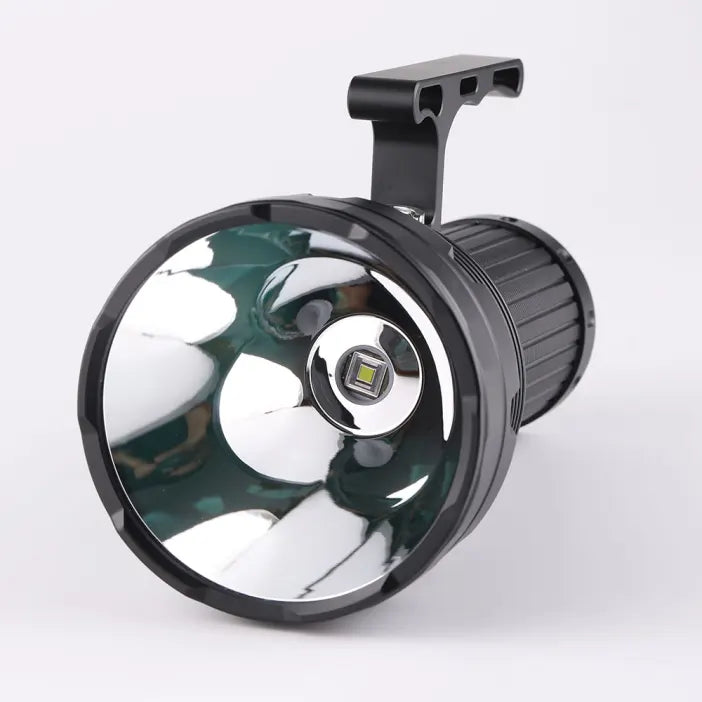

Reflector: Smooth

Driver output current: max 25amps constant current buck

Charging: TYPE-C charging interface (charging current 3A)

Reverse output: PD 18W, In an emergency, you can use C to C charging cables to charge your phone or tablet.

Switch position: side button in the head

Mode memory: yes

Tail stand: yes

Battery included or not:    not included

Tc:5700K white tint

Head diameter: 90.5mm

Battery tube diameter: 51.8mm

Flashlight length: 180mm

Product weight: 617g (including the handle)

Weight with box: 726g

Packing size: 220 * 141 * 104mm

Mode operation instructions:

click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

flashlight on or off, 2-click the button  ——>  turbo 100%

flashlight off,3-click the button   ——>  strobe

flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

flashlight off,6-click the button   ——>   ramping mode switch to   4modes 1%-10%-40%-100% 8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

The flashlight has low voltage protection and temperature control protection.
