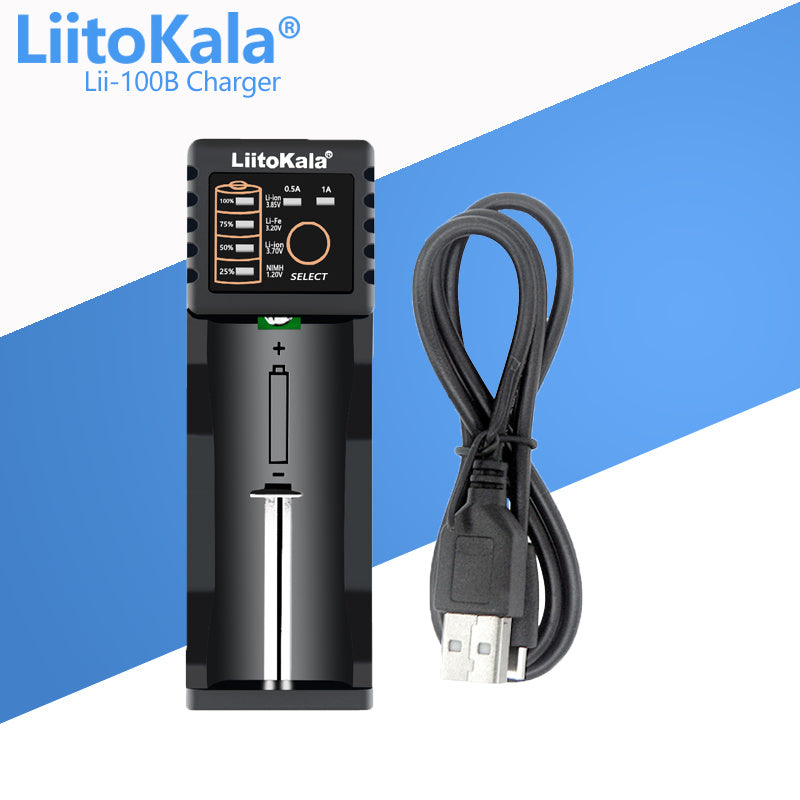

Liitokala Lii-100B for 1.2V AA/AAA 3.2V 3.7V 18650 26650 10440 25500 18350 Lithium Battery Charger

For charging cylindrical li-ion (3.7V, 3.8V), Ni-MH/Ni-Cd, LiFePO4(Li-ion) batteries.

Please read this instruction before use;

Pay attention to the recommended charging current, never select improper charging current

When charge with 5V USB AC adapter, 2A-current AC adapter is recommended

The charger may get hot during working a long time, handle with care!

Please cut off the electricity and remove the battery from the charger when charging  is complete. This item is for Indoor use only.

The displaying data of the charger is only for reference; please refer to professional test instruments if you need accurate data

Feature and Specification:

• Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer management system to ensure the high efficiency
• Two charging current options (0.5A/1.0A)
• Four LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
• Identify Li-ion and Ni-MH automatically; But, you need to adjust the charge mode for LiFePO4 and 3.85V li-ion battery
• It can active 0V rechargeable battery but the charger don’t charge 1.65V ~ 1.85V battery types.
• Buit with Over-charging protection, over-discharging protection and polar reverse protection. Also, it can identify broken battery.
• Charing mode: instant current and voltage.
• DC input charging: working power source at 5V-2A (Micro plug)
• Standard automatical 5V/1000mAh USB output port
•


3. Select Button, LED and function.

MODE Button:

• Press the button to select the battery type when insert into a battery. It begin to charge the battery after fixing the battery type (please noted that it identify Li-ion and Ni-MH automatically, don’t need to select manually)
• Press the button and hold it for 2 seconds whenever after connection to power, it can switch the charging current between 0.5A and 1.0A;

LED Indicator

Connect the charger to power, all LED indicators will be on, when no battery is inserted after 5 seconds, LED indicators will be off except the 0.5A current indicator

When battery is inserted into the charger, 4 LED indicators will be on and 3.7V LED indicators flicker, then, please click the MODE button to fix the correct battery type. It will begin to charge the battery 5 seconds later, and the LED indicators  will show the charging status.

Press the MODE button to show the battery type( 5 seconds ) during charging and return to show the charging status

It can shows the battery’s remaining power when put battery into the charger ( no connection with charging power)

USB output indictor: When USB output is detected, the battery volume indictors will be on for 10 seconds and then off, click the button to show the battery’s volume rate.

4. Specification:

Input: Micro USB DC 5V/2A

Output: 1.4V , 4.2V±0.05V , 3.65±0.05V , 4.35±0.05V

Output current: 500/1000mAh

Constant voltage charging, cutoff current: < 100mAh

Standby current:<15mAh

5. USB Output Function

USB output no-load voltage: 4.90V-5.30V

Output current: 1000mAh (1A)

No-Load current: < 1mAh

The output voltage is 4.75V-5.25V when current is 1000mAh

Output protection voltage: 3.0±0.1V

6. Compatibility

Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
