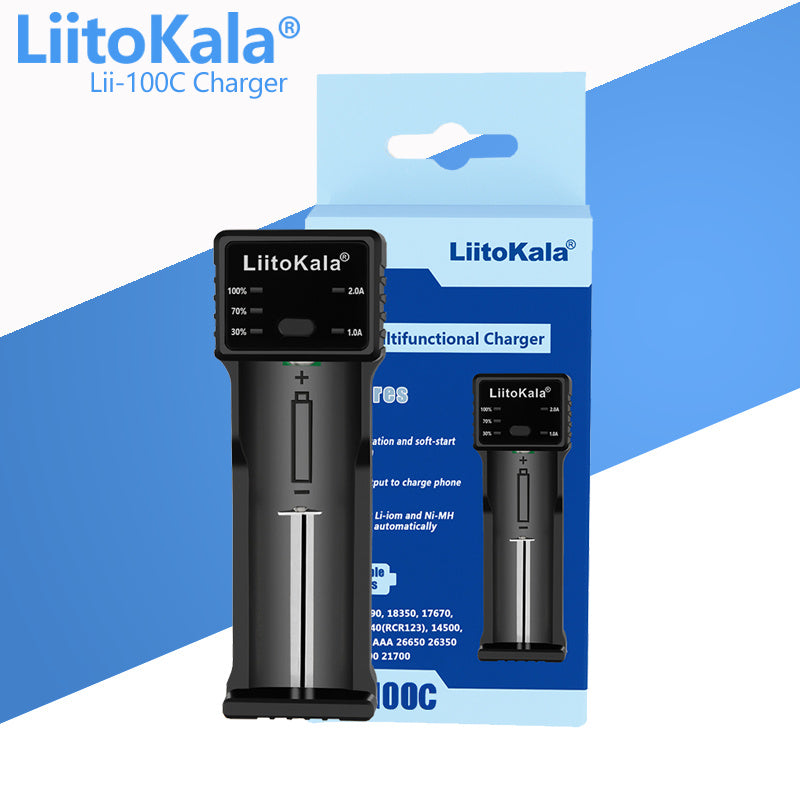

LiitoKala Lii-100C Charger

Features:

1. Adopt Micro USB DC 5V input, single slot independent charging and microcomputer management system
2. Lithium battery can be used for two charging current options (1000mA /2000mA), nickel metal hydride battery charging current default 1000mA
3. LED displays charging status 30% 70% 100% and battery type NiMH 1.2V Li-ion 3.7V
4. It can automatically identify li-ion battery and ni-MH battery
5. With 0V voltage activation function, 1.6-2.2V cannot be charged (but there will be activated current donation type charging).
6. Overcharge and overdischarge, short circuit, intelligent identification of bad batteries and reverse battery detection and protection.
7. Charging mode, constant current and constant voltage
8. DC input, charger working power supply is 5V-2A (Micro plug)
9. With USB 5V/1000 mA USB automatic identification output function,


LED and function description:
1. Button: in the case of power, at any time hold down the selection button to keep 2 seconds to convert 1000mA 2000mA charging current;
2. LED: When the charger is connected to 5V power supply, all the LED of the charger will be on instantly. If the battery is not put into the lamp, it will be off.
When a battery is detected, the battery identified by default is charged 5 seconds later. At this time, the charging indicator blinks according to the corresponding power ratio. When no power is on, load the battery to check the power ratio (it will be off after 5 seconds, and you need to check it again).
3.USB output indicator: when the USB output is detected, the electric quantity indicator lights on for 10 seconds and then goes off. Press the button to check the electric quantity.
4. LED display reference map


Specification:
1, input power: Micro USB DC 5V/2A
2, output voltage: 4.2V ±1%
3, output current: 1000mA/2000mA
4, constant voltage charging, cut-off current: <100mA;
5, external power standby current: <15mA;

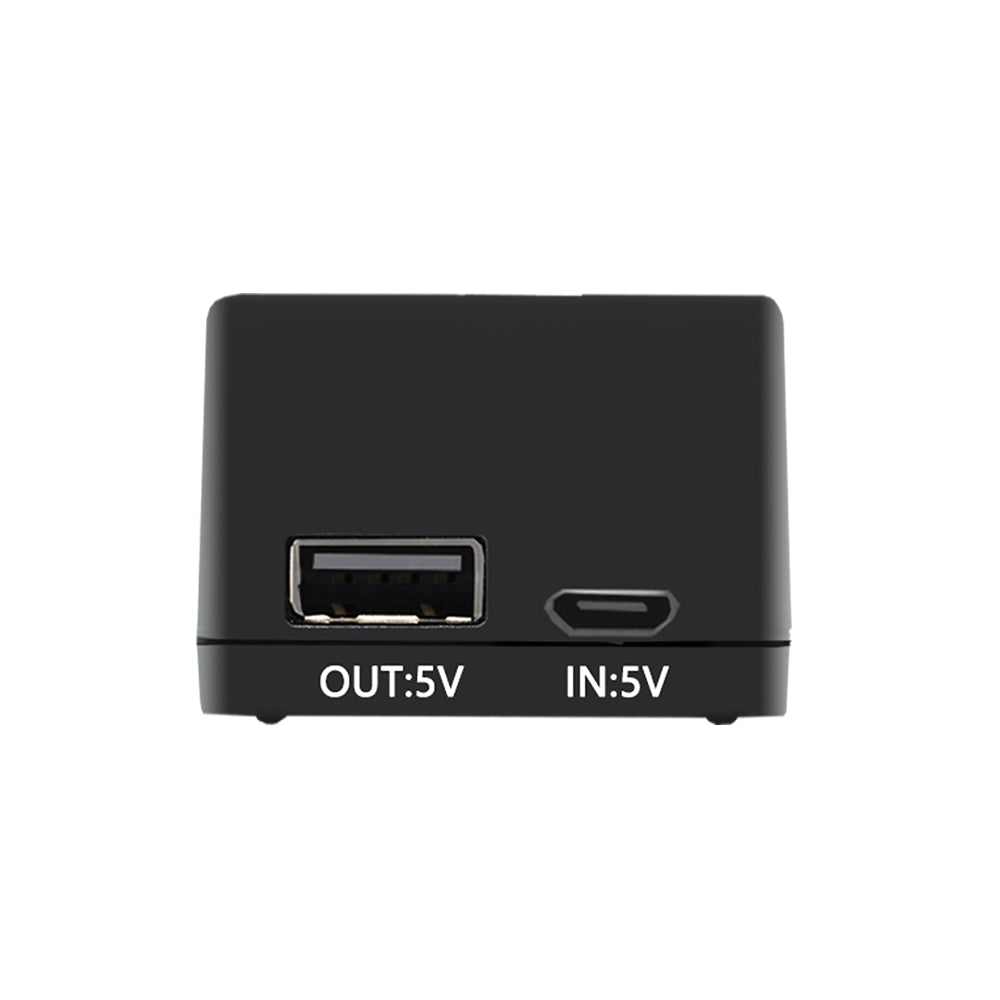

USB output function:
1, USB port output no-load voltage: 4.90-5.30V;
2, output current: 1000mA;
3, no-load current :<1mA;
4, load 1000mA current, its port output voltage: 4.75-5.25V;
5, stop output protection voltage: 3.0±0.1V;
6.compatible battery:
Li-ion/IMR: 26650,22650,21700,18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

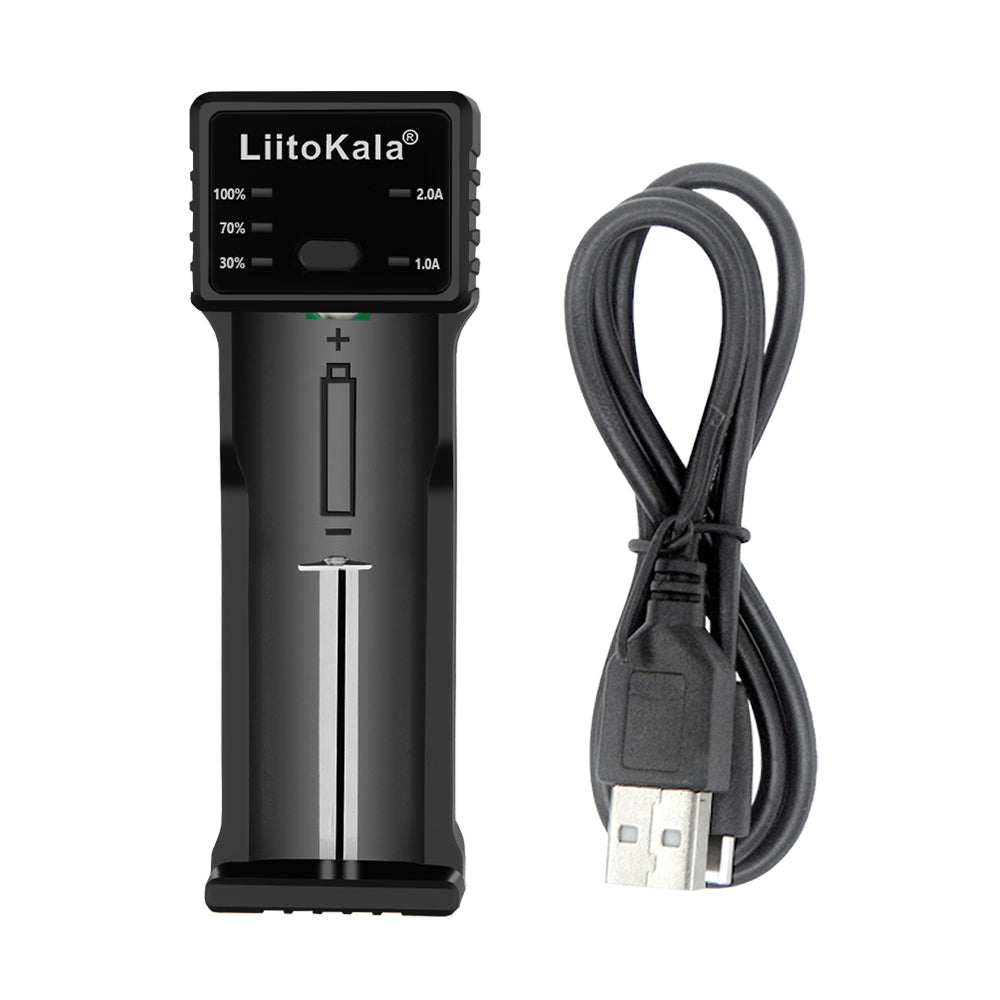

Package included:
1 * Liitokala Lii-100C Battery Charger.
1 * Cable.
1 * Manual.
